Ablenet Buddy Button

The Buddy Button IC is a durable and reliable mechanical switch with a 6.4 cm activation surface. Designed to respond to light pressure, it provides consistent performance with both tactile and auditory feedback. This updated version includes interchangeable coloured switch caps, making it easy to customise for the user or environment while retaining the trusted quality of the Buddy Button.

Key Features

• Large 6.4 cm activation surface for easy access
• Interchangeable switch caps in 5 colours for personalisation
• Responds to light pressure for reliable activation
• Provides tactile and auditory click feedback
• Wired mechanical switch with 152 cm cord length
• Activation force: 217 g (7.65 oz)
• Travel before activation: 0.5 mm (0.2 in)
• 3.5 mm mono right-angle plug connection
• Compatible with Quick Ready Mounting Plate for assistive technology
• Dimensions: 6.4 cm (L) x 6.4 cm (W) x 2.0 cm (H)


First time Use:

1. Place a colored Switch Cap on top of the black switch base.
2. Gently push down on the switch cap and turn it clockwise until you hear it click.
3. The switch cap will not beable to spin in either direction once it is correctly locked in place.
4. Plug Buddy Button IC switch into any switch adapted device with a standard, mono 3.5mm switch jack.
5. Once the activation area is pressed, any attached device will activate.

Changing the Switch Top:

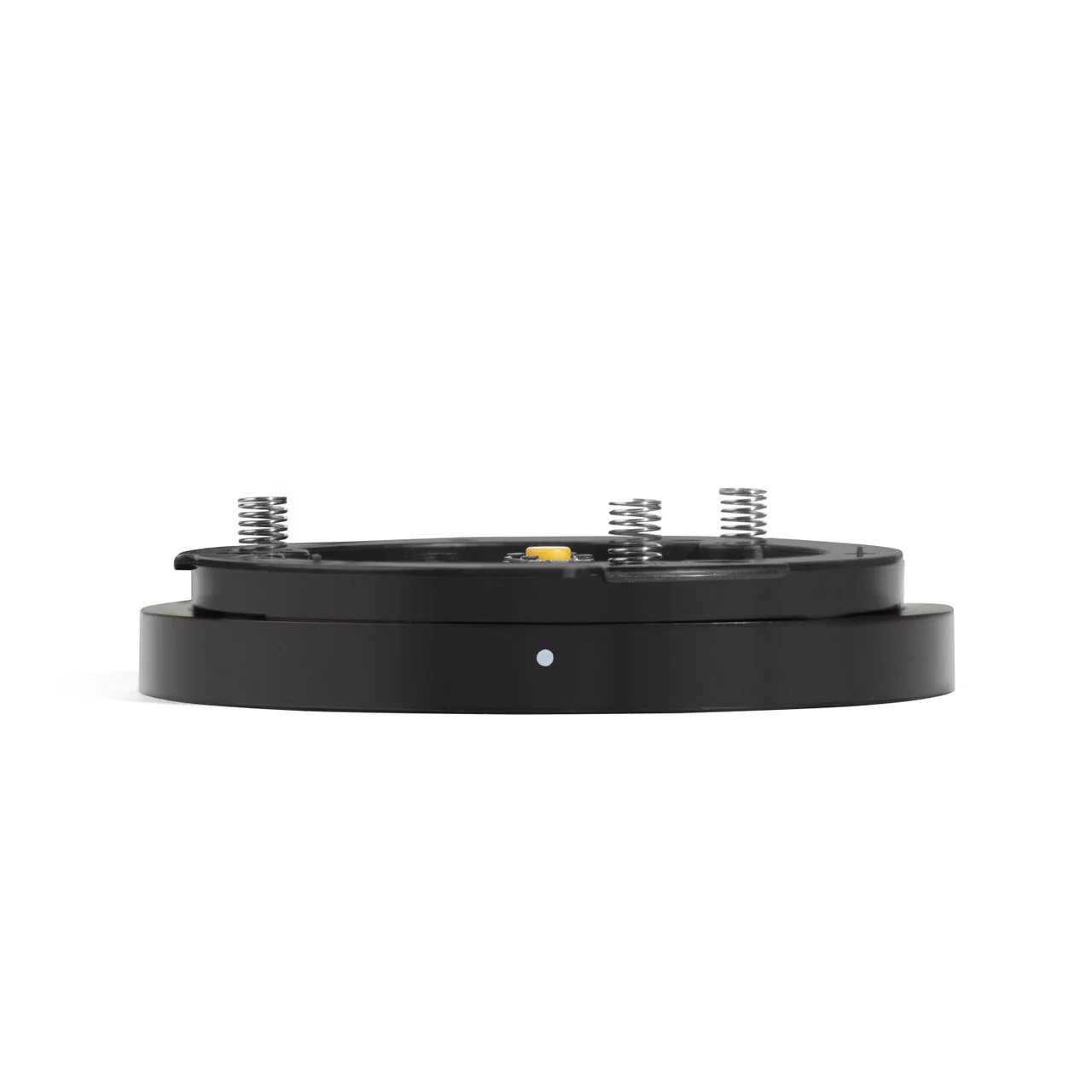

1. Locate the white dot on the switch base. This is the location of the Release Tab.
2. Using the Release Tool, press firmly on the Release Tab while turning the Switch Cap counterclockwise.
